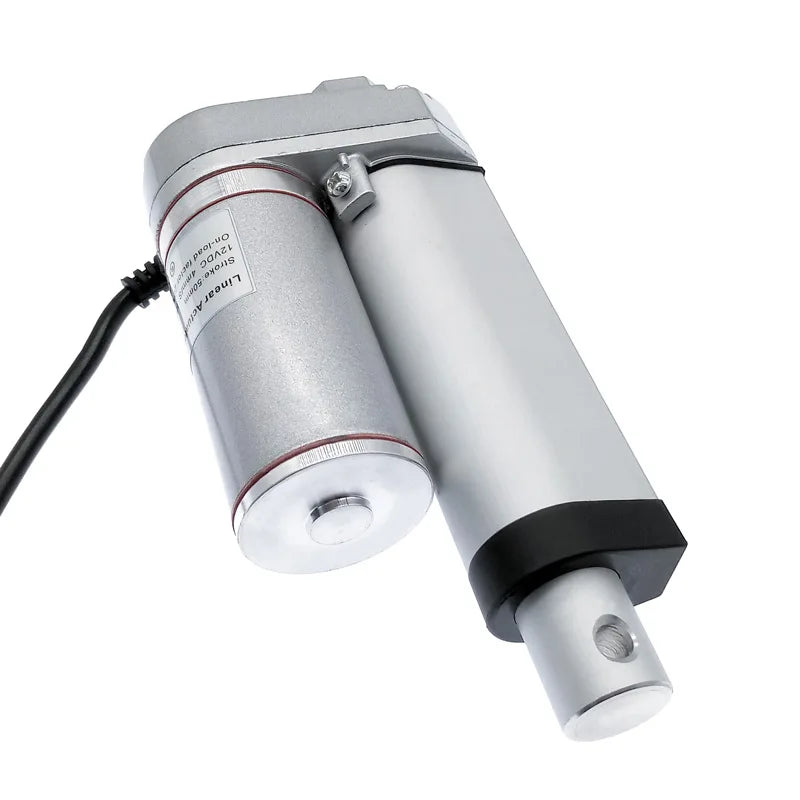

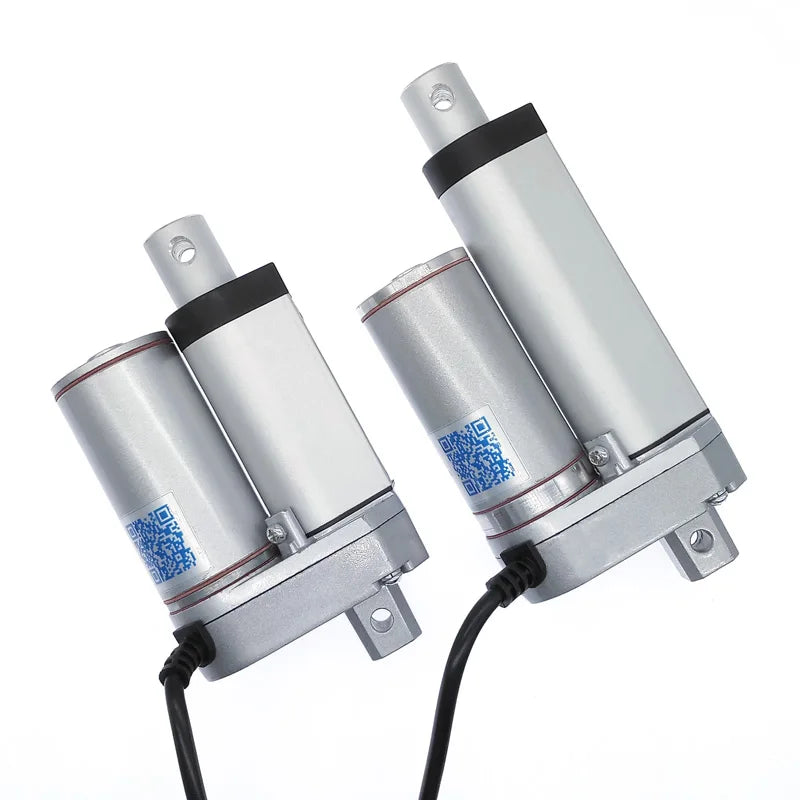

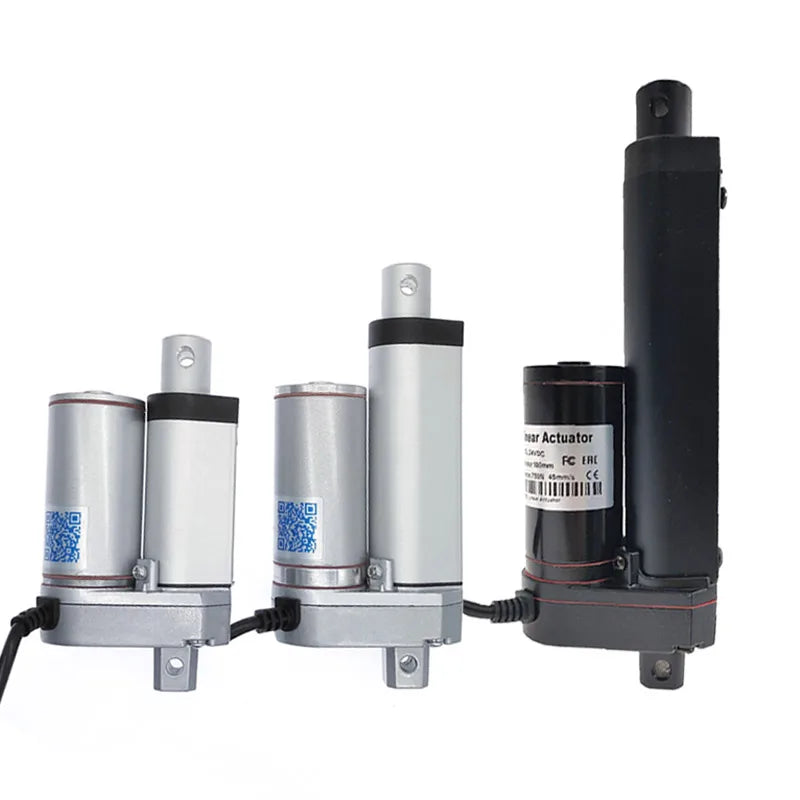

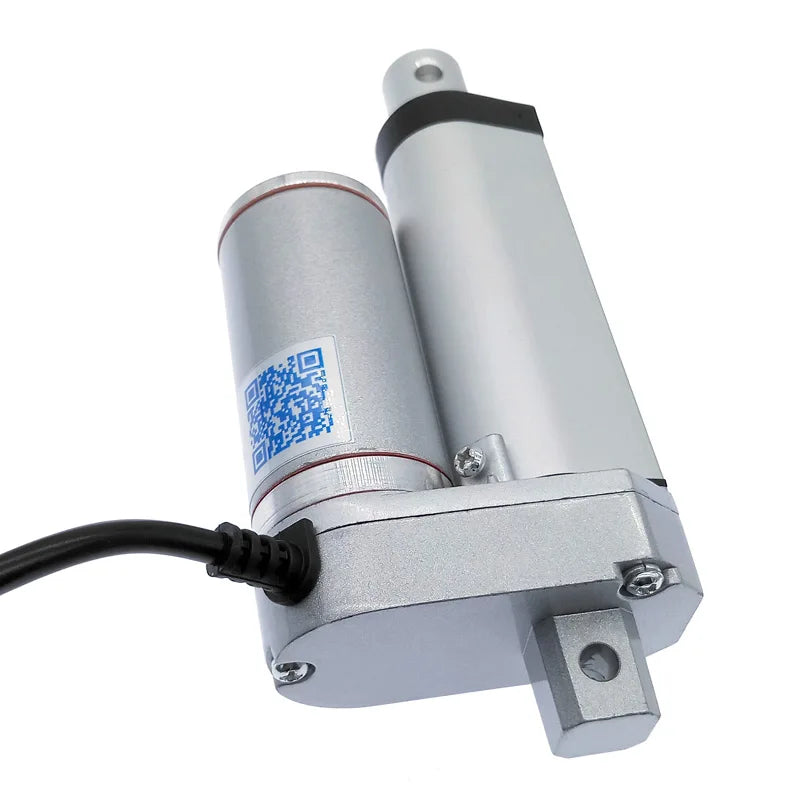

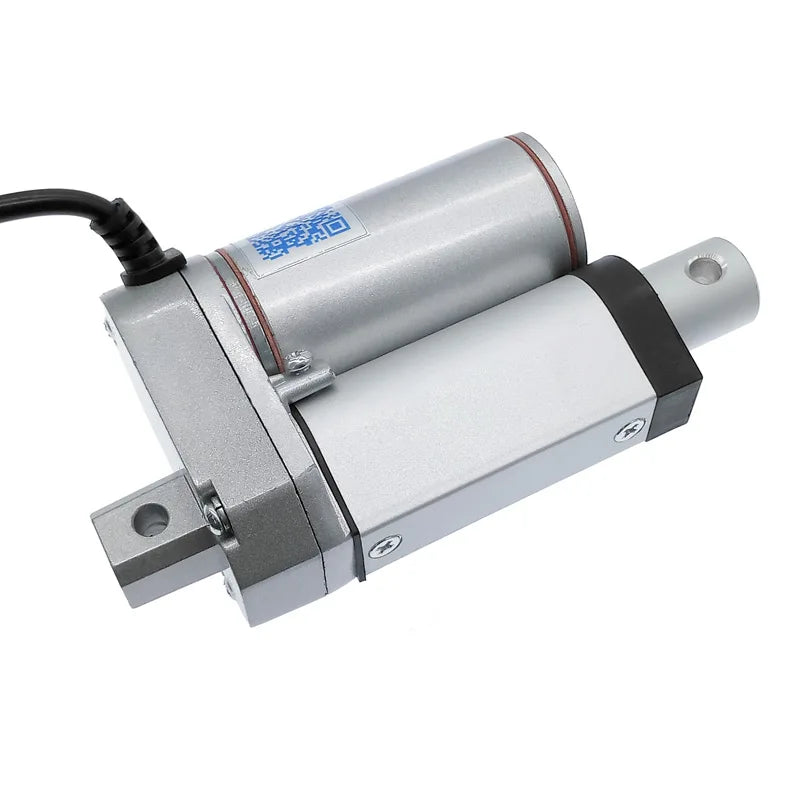

Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N

Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N

Regular price₦60,653.88
/
Shipping calculated at checkout.

Speed(RPM)
Voltage
Gear Count
  • Fastest Delivery Worldwide
  • Secure Payment
  • In stock, ready to ship
  • Inventory on the way

SPECIFICATIONS

Brand Name: CNMAWAY

Certification: CCC

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 1~2A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 2

High-concerned chemical: None

Model Number: Stroke 100mm/50mm/30mm/20mm

Origin: Mainland China

Output Power: <18.65

Output Voltage: 12~35W

Protect Feature: Drip-proof

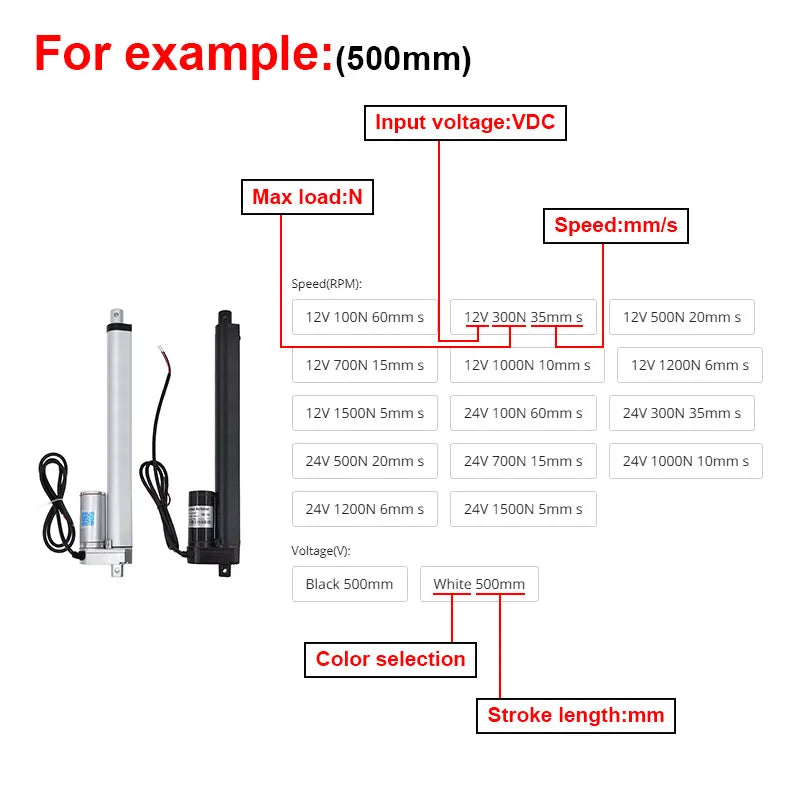

Speed(RPM): 4/6/10/15/20/35/60/90mm/s

Torque: 100N300N500N700N1000N1200N1500N

Type: Gear Motor

Use: Boat

Voltage(V): 12VDC/24VDC/36VDC/48VDC

Technical Parameters:

Rated power: 20W Maximum 30W

Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm

Permanent magnet DC motor drive;

Voltage: 12V,24V

Standard protection grade: IP54

Material: aluminum alloy

Ambient temperature -20°C to +75°C.

Low noise design, noise level less than 42dB.

Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

The self-locking force of the linear actuator is about 80%


Size:

L= Minimum installation distance

S= Effective stroke


Size introduction:

Stroke Length: means the movement length of linear actuator.

Retracted Length: means the length when linear actuator 100% fully closed.

Extended Length: means the length when linear actuator 100% fully open.


Stroke length introduction:

50mm Stroke, Retracted Length=155mm, Extended Length=205mm

100mm Stroke, Retracted Length=205mm, Extended Length=305mm

150mm Stroke, Retracted Length=255mm, Extended Length=405mm

200mm Stroke, Retracted Length=305mm, Extended Length=505mm

250mm Stroke, Retracted Length=355mm, Extended Length=605mm

300mm Stroke, Retracted Length=405mm, Extended Length=705mm

... ...
